Description:Braided
from high strength PAN synthetic fiber pre-impregnated with PTFE and
special lubrication, and re-impregnated during square braiding. It has
excellent properties of sealing, lubricating and resistance to
chemicals.
ZD-P1800C PAN Fiber Packing with
Rubber Core
High elastic red silicone rubber core can
absorb vibration, to control leakage, suitable for worn-out pumps.
APPLICATION:Excellent
multi-service for a wide variety of uses throughout a plant.
Used in pumps and valves, and can handle most chemicals
except strong acid, strong alkali and strong oxidizer.
Especially for the condition of middle temp. high-pressure,high-speed,and
where contamination is not permitted.
Main Specification:
|
Temperature |
260℃ |
|
Pressure |
20bar(revolving)
80bar(reciprocating) 100bar(Valve) |
|
PH
Range |
1-13 |
|
Linear
Speed |
20M/S |
|
Density |
1.3g/cm3 |
|
Size |
3*3mm-60*60mm（or as request） |
For more information,please contact with us
directly,thanks！

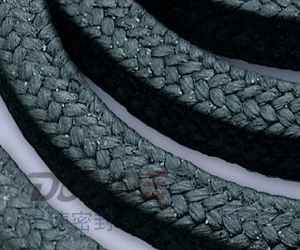

PAN Fiber Packing Treated with Graphite
Item No.:ZD-P1801
|
Description:PAN
Fiber Packing Treated with Graphite
is braided of high strength PAN
synthetic fiber, treated with graphite and special lubrication. Much of
graphite filler increases the service temperature and the density of the
packing.
APPLICATION:Universal
packing for pumps and valves, and handle water, air, steam,
mild acids and alkalis, all kinds of organic solvents and
Chemicals. Especially suitable for the condition of high-temperature,high-pressure,
medium speed.
Main Specification:
|
Temperature |
350℃ |
|
Pressure |
25bar(revolving)
100bar(reciprocating) 150bar(Valve) |
|
PH
Range |
1-13 |
|
Linear
Speed |
15M/S |
|
Density |
1.3g/cm3 |
|
Size |
3*3mm-60*60mm（or as request） |
For more information,please contact with us
directly,thanks！
|
|
