Ceramic
Fibre Braided Packing
Item No.:ZD-P1720
Description:Ceramic
fibre packing is braided with high quality ceramic fiber without ant
impregnant.It is braided without any flammability component.This kind of
gland Packing is staticc sealing packing.Ceramic fibre packing has many
excellent capabilities of high strength and high temperature resistance,
low density,low thermal conductivity,better
insulation,incombustible,etc.Usually,It can be impregnated with graphite
latex.This kind of graphite ceramic fibre packing is used in sealing of
high temperature and high pressure.It can be reinforced with stainless
steel or glass fibre.This will make much improvement to Ceramic Fibre
Packing.
Main Specification:
|
Temperature |
800℃~1260℃ |
|
Pressure |
3-20MPa |
|
PH Range) |
3-14 |
|
Linear Speed) |
12M/S |
|
Size |
3*3mm-60*60mm（or as request） |
For more information,please contact with us
directly,thanks！

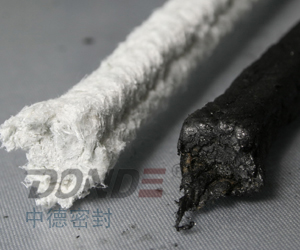

Ceramic packing with graphite
impregnation
Item No.:ZD-P1721
Description:Ceramic
packing with graphite impregnation is square braided from ceramic fiber
impregnated with graphite. Normal for valves and static seal under
supper high temperature.
ZD-P1721R Graphited Ceramic packing
with Nickel wire is ceramic packing reinforced
with Inconel or SS or Nickel wire and lubricated by graphite.
APPLICATION:As
a static seal for vessels, heaters, manhole, lids, covers, thermal
insulation and fire-proof of pipes etc under high temperature. Suited
for chemically neutral and resistant to water, steam, hot air, oils and
so on.
Main Specification:
|
Temperature |
850℃ (with fibreglass),1050℃(with
wire) |
|
Pressure |
3-20MPa |
|
PH Range) |
5-9 |
|
Size |
3*3mm-60*60mm（or as request） |
For more information,please contact with us
directly,thanks！
|
