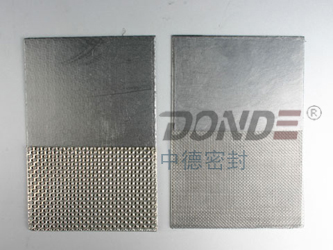

Reinforced(Tanged) Graphite Sheet

Item No.:ZD-GS1110

Description::Reinforced expanded graphite sheet is comprised of expanded graphite sheet and various steel sheets such us tanged, flat or mesh. Reinforced expanded graphite sheet has character of thermally stability, high strength and no cold flow etc. Reinforced expanded graphite sheet is an ideal material of all kinds of reinforced graphite gaskets, engine heat gaskets etc.There are many kinds of reinforced expanded graphite sheet.Such as reinforced expanded graphite sheet with ss304/304L insert,reinforced expanded graphite sheet with ss316/316L insert,Reinforced expanded graphite sheet with tinplate insert,ect.

Suitable Working Condition:：

Pressure	20MPa
Temperature	200-600℃（in the air）
Production Standard	JB/T6628-93

Routine Size:

Thickness（mm）		width（mm）	Length（m）
Tanged Style	Plain Metal Sheet	<=1500	=<4
1.0~3.0	0.8~3.0

Main specification：

Reinforce Material	Configuration	Pressure(N/mm2)	Temperature(℃)
Reinforce Material	Configuration	Pressure(N/mm2)	Oxidizing Condition	Non Oxidizing Condition
Tanged CS Sheet (Thickness: 0.2~0.25)		>=48	-10~450	-10~500
AISI304,316 Tanged (Thickness:0.1~0.127)		>=48	-240~450	-200~600
AISI304,316 Plain Sheet) (Thickness: 0.05~0.1)		>=45	-240~450	-200~600
AISI304,316 Mesh		>=40	-240~450	-200~600

Reinforce Material	Configuration	Compressibility	Recovery	Sealing Constant(1.5mm)m1/hr
Reinforce Material	Configuration	Compressibility	Recovery	N2	oil
Tanged CS Sheet (Thickness: 0.2~0.25)		30~35	15~20	30	<0.5
AISI304,316 Tanged (Thickness:0.1~0.127)		30~40	15~30	60	<0.5
AISI304,316 Plain Sheet) (Thickness: 0.05~0.1)		40~50	10~15	35	<0.5
AISI304,316 Mesh		30~35	15~20	7000	58

Type Of Reinforced Graphite Sheet:

ZD-G1100	Tin-plate Tanged Graphite Sheet
ZD-G1110	SS304 Tanged Graphite Sheet
ZD-G1120	SS316 Tanged Graphite Sheet
Others Can be supplied according to customer's requirement.
